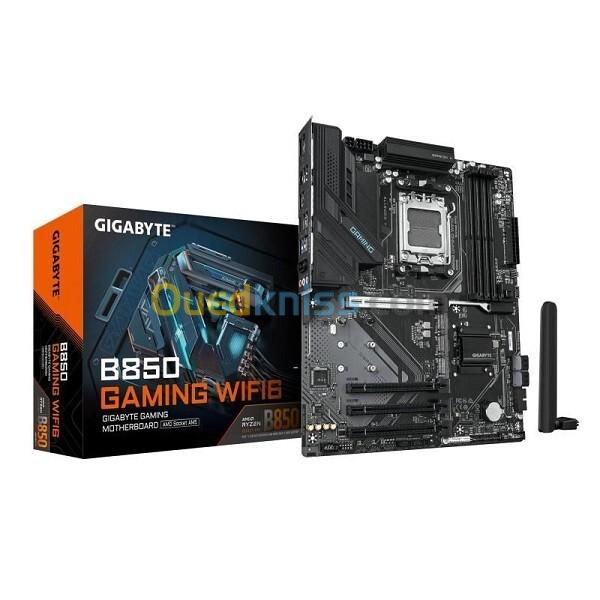

GIGABYTE B850 GAMING WIFI-6

Details type Mainboard Color black/silver EAN 4719331867942 Manufacturer’s No. B650M GAMING WIFI6E base AM5 Maximum supported CPUs 1 operating system Support Windows 10 ready, Windows 11 ready processor Supported models Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxx (Granite Ridge), Ryzen 5 9xxxX (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge), Ryzen 9 9xxxX3D (Granite Ridge) Chipset AMD B650 slots PCIe x16 1x (of which: 1x PCIe x16) PCIe x1 1 BIOS 256Mb (32MB) SPI EFI BIOS Yes Form factor µATX use PC power supply ATX12V (24-Pin + 8-Pin) memory maximum 128 GB Number of sockets 2x DDR5 supported standards DDR5-6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 Channels 2 Maximum storage ranks 4 Maximum data density 4096 Mbit External connections Mouse/keyboard combo (PS/2) 1 USB-A 3.2 Gen 1 (5 Gbit/s) 2 A notice: The designation USB 3.2 Gen 1 corresponds to the earlier designations USB 3.1 Gen 1 and USB 3.0. The designation USB 3.2 Gen 2 corresponds to the earlier designations USB 3.1 Gen 2 and USB 3.1. USB-A 2.0 3 HDMI 1 DisplayPort-Out 1 microphone 1 Line-In 1 Line-Out 1 RJ-45 1 Bluetooth Yes Wi-Fi Yes Internal connections SATA 4 M.2 1 M.2 Module Key M M.2 interface PCIe M.2 Length 80 – 80 mm RGB LED Header 1 addressable RGB LED header 2 USB-C 3.2 Gen 2 (10 Gbit/s) 1 4-pin PWM fan 3 Connections (optional) USB 3.2 Gen 1 (5 Gbit/s) 2 USB 2.0 4 TPM Yes SATA controller AMD B650 directly usable RAID levels 0, 1, 10 USB controller AMD B650 Onboard graphics The motherboard’s graphics ports can only be used when using a CPU with an integrated graphics chip. Sound Realtek Audio CODEC LAN Realtek 2.5 GbE LAN Realtek Wi-Fi 6E RTL8852CE + Bluetooth 5.3 Further information To support even the latest processor cores, a BIOS update may be required. Dimensions Width: 244 mm x Height: 244 mm WEEE number 54978142
