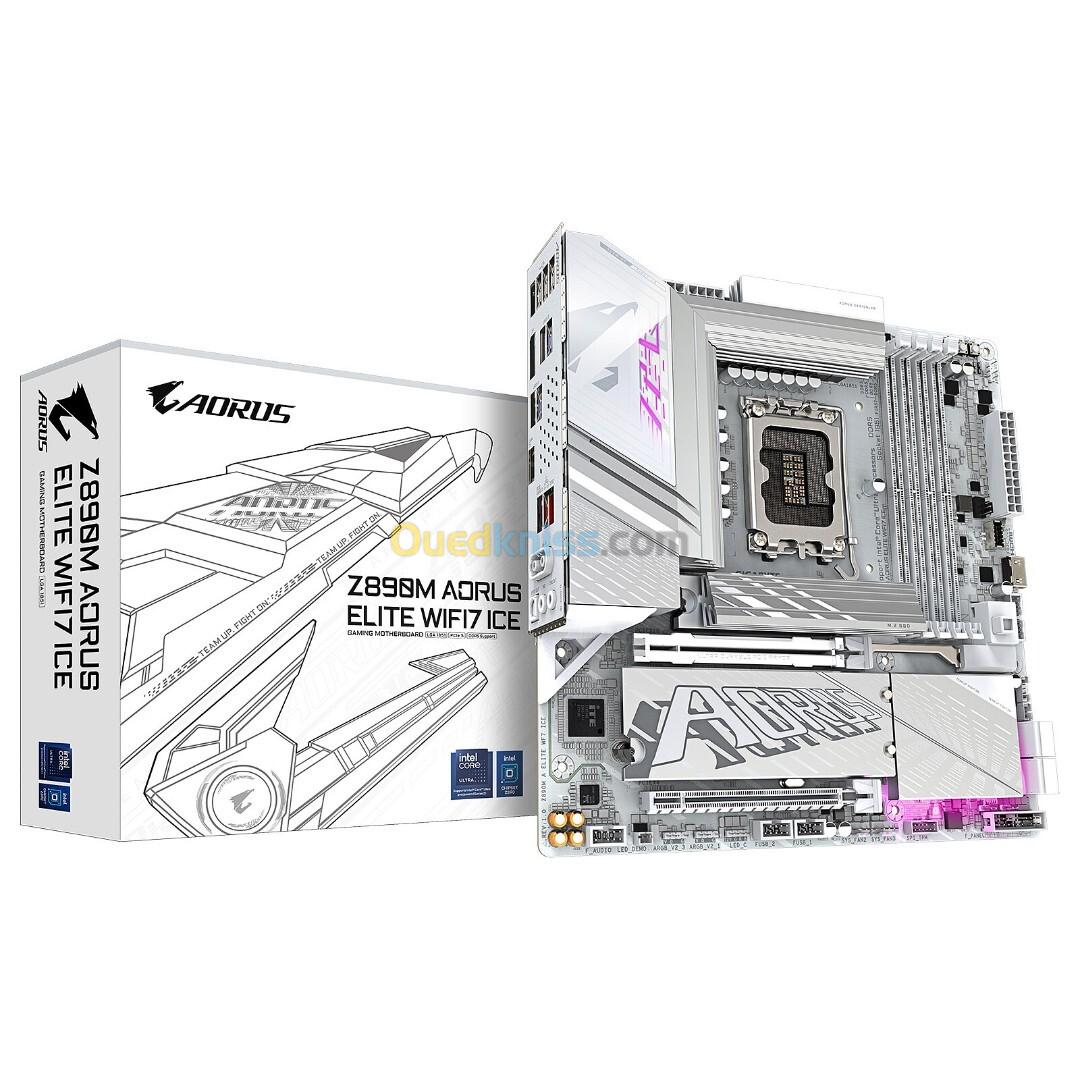

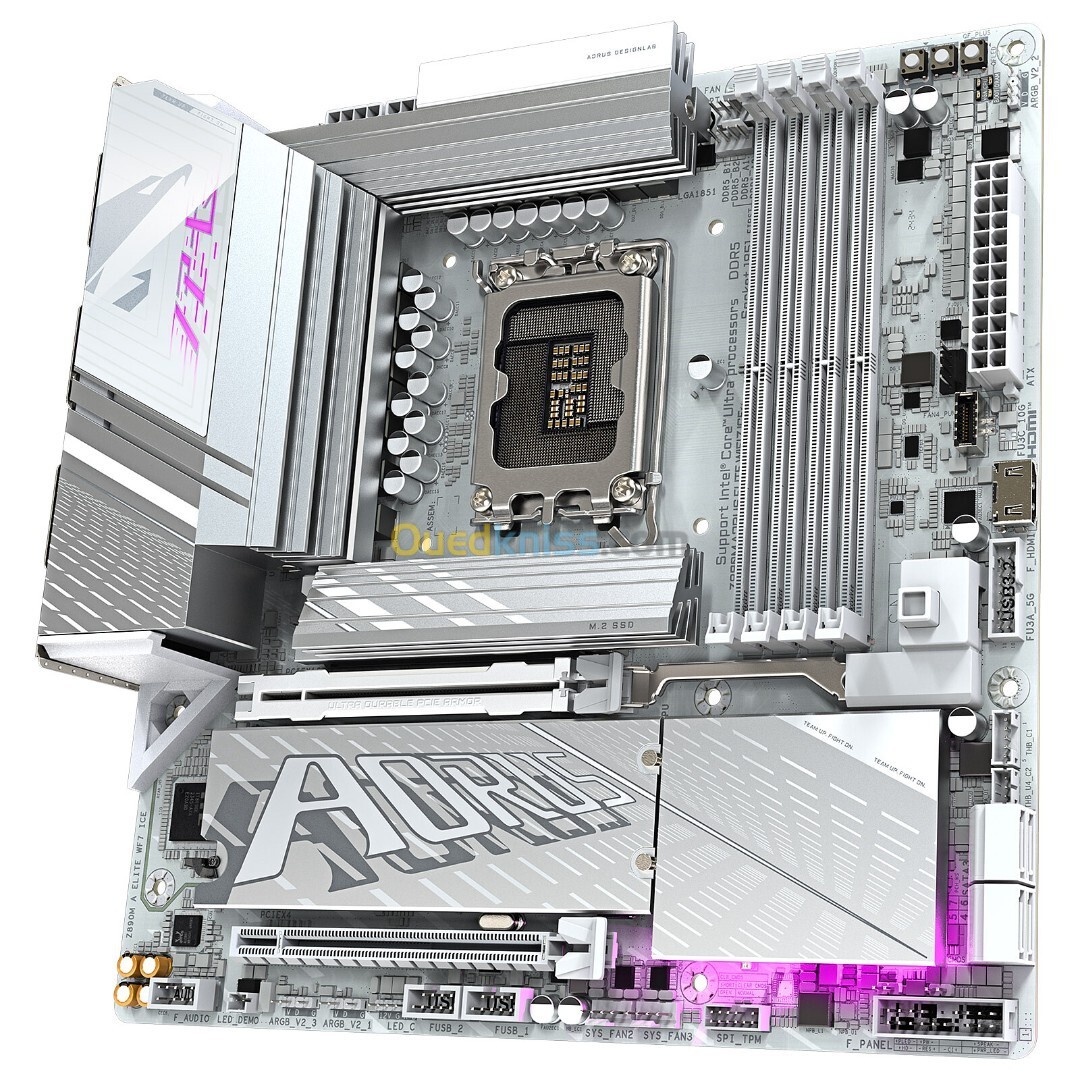

General information Product name Gigabyte Z890M AORUS ELITE WIFI7 ICE. Brand GigabyteGigabyte Model Z890M A ELITE WF7 ICE Processor Processor support Intel 1851 Number of CPUs supported 1 Chipset Chipset Intel Z890 Memory Memory format 4 X DIMM 288 pins (DDR5) Memory Frequency(ies) DDR5 9200 MHz DDR5 9066 MHz DDR5 8933 MHz DDR5 8800 MHz DDR5 8600 MHz DDR5 8400 MHz DDR5 5600 MHz DDR5 5800 MHz DDR5 6000 MHz DDR5 6200 MHz DDR5 6400 MHz DDR5 6600 MHz DDR5 8266 MHz DDR5 8200 MHz DDR5 8000 MHz DDR5 7950 MHz DDR5 6800 MHz DDR5 7000 MHz DDR5 7200 MHz DDR5 7400 MHz DDR5 7600 MHz DDR5 7900 MHz DDR5 7800 MHz Memory type DDR5 Memory technology Dual Channel Maximum RAM capacity per slot 64 GB Maximum RAM capacity 256 GB Graphic Integrated graphics controller No Compatible graphics core integrated in the CPU Yes Expansion slots Graphic connector(s) 1 X PCI Express 5.0 x16 Number and Type of slots 1 X PCI Express 4.0 x16 (x4) Multi-GPU type None Audio Audio Chipset Realtek ALC1220-VB Number of audio channels 8 Network Number of ports/Ethernet controler 1 X Realtek RTL8125 Network standard(s) 2.5 Gbps Gigabit Ethernet (2.5 GbE) Bluetooth 5.4 Wi-Fi 7 Wi-Fi Yes Storage RAID supported Yes Hard drives connectors 1 X M.2 - PCI-E 5.0 x4 4 X Serial ATA 6Gb/s (SATA Revision 3) 2 X M.2 - PCI-E 4.0 x4 Number of M.2 slot(s) 3 Supported RAID Modes 0 1 10 5 Connectivity Motherboard connector location Standard connectors (on the motherboard) Rear panel connectors 1 X USB4 (Type-C) 1 X USB 3.1 4 X USB 2.0 4 X USB 3.0 1 X RJ45 Female 2 X 3.5mm Jack Female Stereo 1 X Digital audio S/PDIF Optical 1 X DisplayPort Female 2 X SMA Female Additional connectors 4 X Internal USB 2.0 1 X ATX 24 Pin 1 X Internal USB 3.1 Type C 2 X +12V (Power supply P8) 3 X Addressable LED RGB connector(s) 1 X LED RGB connector(s) 2 X Internal USB 3.0 Front panel audio BIOS Flash Update Physical characteristics Motherboard format Micro ATX Length 244 mm Width 244 mm Equipment Advanced overclocking features Yes Use Gamer LED Yes
